SCQT Quarter Turn Metal Wing Head

SCQT0610


This Spanclamps Part # SCQT0610 is a quarter turn metal wing head This clamp has a metal knob head and bears indications showing if the clamp is open or closed. The clamp is furnished with 3 socket head cap installation screws of M2x0,4 - 5 mm. The receptacles that can be used with this clamp are

Technical information


Weight (g)
40
Heatresistant
200 °C
Shear strength*
1800 N
Tensile strength*
1200 N
Clamping force
60 N

Material Info.


Body/shank
S45C - electroless nickel-plated
Pin
SUS303
Knob
SCS13
Spring
Equivalent SWOSC-V


REQUEST A QUOTE     DOWNLOAD CATALOGUE

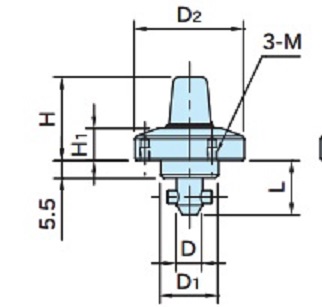

Measurments


Plate thickness
6-10 mm
D (- 0,08 / - 0,04)
5
D1 (h9)
14
D2
25
D3
20
DP
21
L
15,5
H
19
H1
6,5
M
M2x0,4 - 3 mm deep

SpanClamps Part No. is factory new.
SpanClamps Part No. has a certificate of Quality, and certificate of Conformity.


*Shear & Tensile Strength are static loads. Fastener will break when it receives this load. When the two plates receive a tensile load bigger than the fastener's clamping force, there will be a gap between the plates.
Maximum dynamic loads are currently set at 1/4th of the static loads, this needs to be life tested in the customer application.
