Quick accurate positioner Stud Tapered with Hexagonal head

SCQAPSHS1810T

This SpanClamps Part SCQAPSHS1810T is a Quick accurate positioner Stud Tapered with Haxagonal head.

Recommended Receptacle

Technical information

Weight (g)

134

Allowable Screw Torque (n. m)*)

2

Clamping Force (N)

1700

Material Info.

Body

SCM440 Steel Nitrocarburized

Clamping Screw

SCM435 Steel Black Oxide finished Quenched & tempered

Ball

J2 Steel

REQUEST A QUOTE DOWNLOAD CATALOGUE

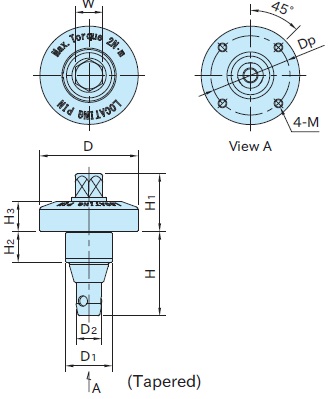

Measurments

D1 (g6)

18

H1

22

H

30

H2

9.5

D

39

H3

12

D2

9

W

10

M

M4x0.7 Depth 6

SpanClamps Part No SCQAPSHS1810T is factory new.
SpanClamps Part No SCQAPSHS1810T has a certificate of Quality, and certificate of Conformity.

Maximum dynamic loads are currently set at 1/4th of the static loads, this needs to be life tested in the customer application. *Shear & Tensile Strength are static loads. Fastener will break when it receives this load. When the two plates receive a tensile load bigger than the fastener's clamping force, there will be a gap between the plates.
