SCCH CAM Handles-Stud

SCCH-M8-50

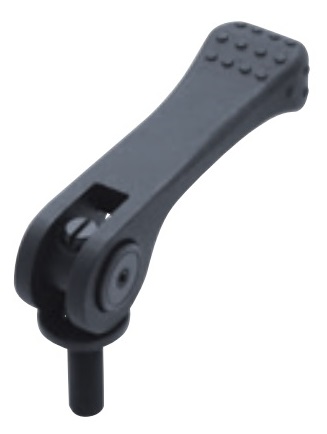

This SpanClamps Part # SCCH-M8-50 is a Cam Handle Stud. The SCCH-M8-50 is a Black Oxide Finish, and can bes set to a desired direction.

Technical information


Weight (g)
186
Clamping Stroke
3.3
Operating Load*
200 N
Clamping force
3.6 kN

Material Info.


Body
S45C Steel Black Oxide finish


REQUEST A QUOTE     DOWNLOAD CATALOGUE

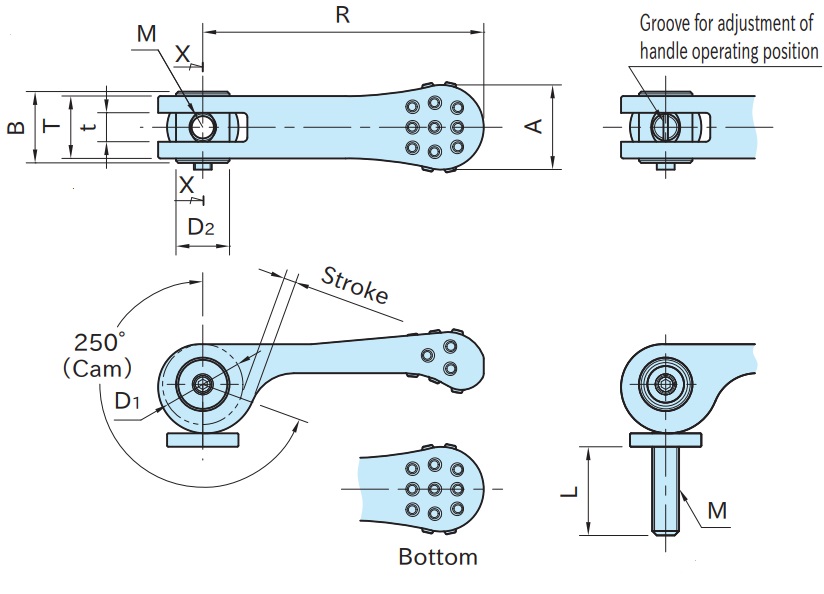

Measurments


A
24
B
20
D1
22
M
M 8x1.25
D2
15
T
3
t
9
R
80

SpanClamps Part No SCCH-M8-50 is factory new.
SpanClamps Part No SCCH-M8-50 has a certificate of Quality, and certificate of Conformity.


*Operating Load is static loads. Fastener will break when it receives this load. When the two plates receive a tensile load bigger than the fastener's clamping force, there will be a gap between the plates.
Maximum dynamic loads are currently set at 1/4th of the static loads, this needs to be life tested in the customer application.
