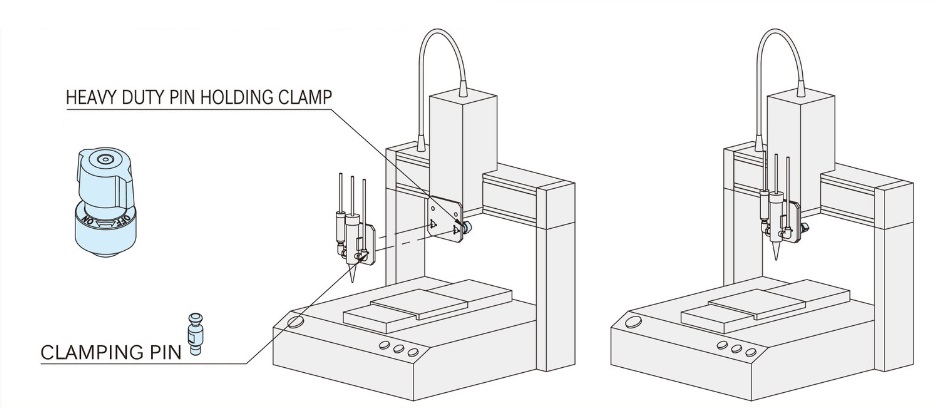

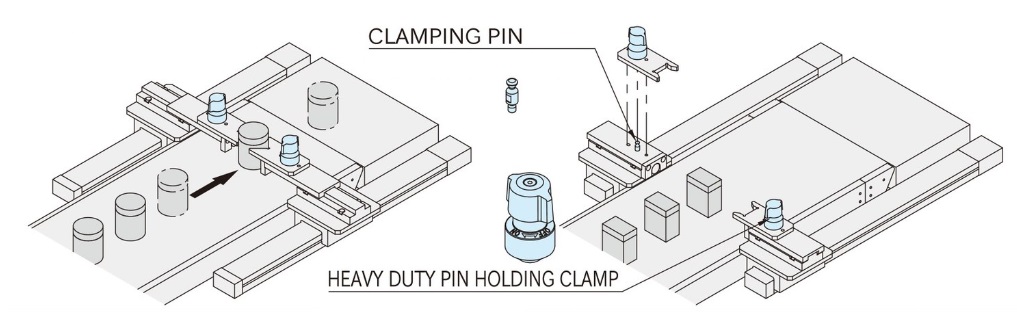

SpanClamps Heavy-Duty Snap-in Quarter-Turn

Quick Locks for Frequent Changeover for space-saving application

Select Your Heavy-Duty Snap-in Quater-Turn Stud

Plastic Knob SCSIQTHD-P	Stainless Steel Knob SCSIQTHD-S	Slim Plastic Knob SCSIQTHDS-P	Slim Stainless Steel Knob SCSIQTHDS-S
SCSIQTHD0620-P	SCSIQTHD0620-S	SCSIQTHDS0620-P	SCSIQTHDS0620-S

Heavy Duty Quarter Turn with Compact Body

The body diameter was reduced from 34mm to 25mm. This fastener can be mounted in a smaller space.

Select Your Snap-in Pins

STANDARDS

	Part number	Compatible Heavy Duty Quarter turn Snap-in Stud
	SCSPHDM4-S	SCSIQTHDS0620-P, SCSIQTHDS0620-S
	SCSPHDM5-S	SCSIQTHD0620-P, SCSIQTHD0620-S

WITH FLANGE

	Part number	Compatible Heavy Duty Quarter turn Snap-in Stud
	SCSPHDFM5-S	SCSIQTHDS0620-P, SCSIQTHDS0620-S
	SCSPHDFM6-S
	SCSPHDFLM6-S	SCSIQTHD0620-P, SCSIQTHD0620-S

The difference is the thread size. The flanged type can be mounted on a bigger tapped hole.

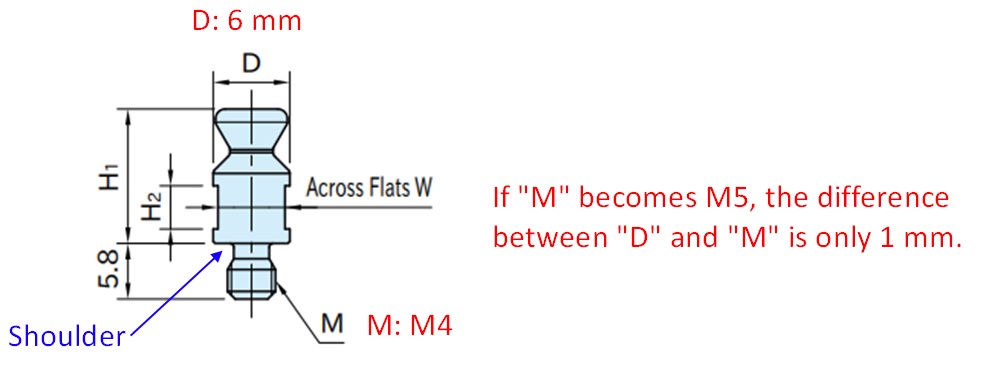

The flange is necessary for bigger diameter. The only function of the flange is to create a rest (shoulder). For example, please see the dimensions of SCSPHDM4-S.
When you mount this pin on the tapped hole on the plate, you screw it in and it automatically stops when the bottom surface (shoulder) contacts with the plate. The bottom surface is 6 mm and it is 2 mm bigger than the threaded part (M4). But if the threaded part becomes M5, the diameter difference between the bottom surface and the threaded part is too small. The pin does not stop when you screw it in the tapped hole. To avoid this problem, we developed the flanged type.

Spacer SCQTS is required for 3mm or more, under 6mm panel thickness

	Spacers Part Number
	SCQTS25
	SCQTS34

How To Use

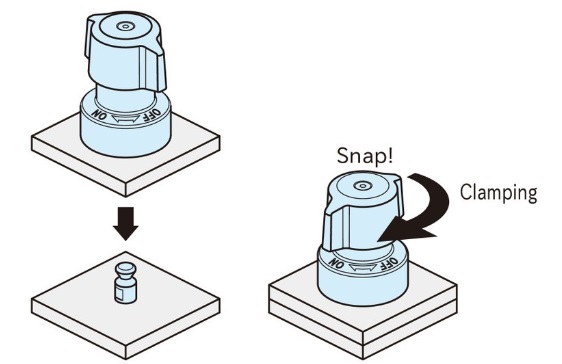

• Ensure that the knob is positioned at the "OFF" mark and put Snap-in clamp over the snap-in pin.
• Turn the knob to the "ON" position for clamping. The knob clicks when it is Clamped/Unclamped.
• Note : For unclamping, follow back these steps

Features

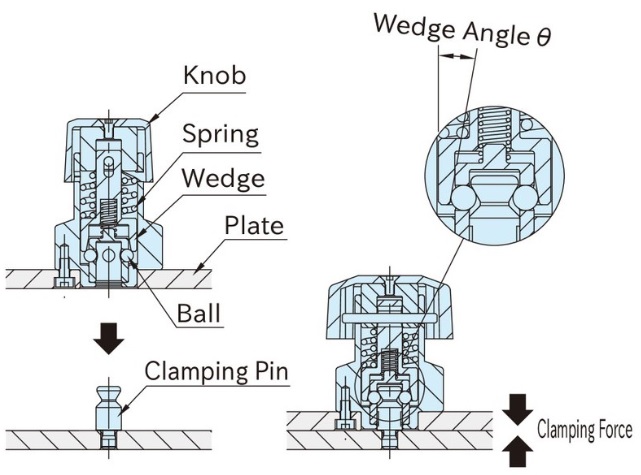

4 balls hold the clamping pin to pull the plate for clamping.
