SCCH CAM Handles-Stud

SCCH-M4-20-N

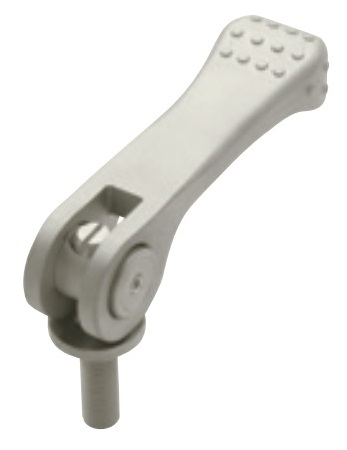

This SpanClamps Part # SCCH-M4-20-N is a Cam Handle Stud. The SCCH-M4-20-N is a Electroless Nickel Plated, and can bes set to a desired direction.

Technical information


Weight (g)
29
Clamping Stroke
1.8
Operating Load*
80 N
Clamping force
0.9 kN

Material Info.


Body
S45C Steel Electroless Nickel Plated


REQUEST A QUOTE     DOWNLOAD CATALOGUE

Measurments


A
14
B
12
D1
12
M
M 4x0.7
D2
8
T
2
t
4.5
R
40

SpanClamps Part No SCCH-M4-20-N is factory new.
SpanClamps Part No SCCH-M4-20-N has a certificate of Quality, and certificate of Conformity.


*Operating Load is static loads. Fastener will break when it receives this load. When the two plates receive a tensile load bigger than the fastener's clamping force, there will be a gap between the plates.
Maximum dynamic loads are currently set at 1/4th of the static loads, this needs to be life tested in the customer application.
