SCSBLQT Knob Locking Quarter Turn with stainless Steel wing head
SCSBLQT1220-S
This Spanclamps Part # SCSBLQT1220-S is a Knob Locking Quarter Turn with stainless steel wing head. This clamp has a stainless steel knob head and bears indications showing if the clamp is open or closed. The clamp is furnished with 3 socket head cap installation screws of M2x0,4 - 5 mm. The receptacle that is used with this clamp is
Recommended Receptacle
Proper sensor Receptacle
SCBLREM20-S
Technical information
Weight (g)
130
Heatresistant
200 °C
Shear strength*
9000 N
Tensile strength*
1500 N
Clamping force
50 N
Material Info.
Body
303 Stainless steel
Shank
420J2 stainless steel Quenched - tempered
Knob
SCS13 stainless steel (Equivalent to 304)
Ball
440C - quenched and tempered
Spring
304 Stainless steelWPB

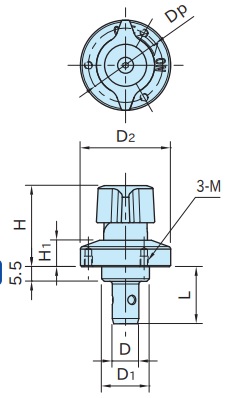

Measurments
Plate thickness
12-20 mm
D (- 0,10 / - 0,05)
10
D1 (h9)
18
D2
34
D3
34
DP
28
L
27,5
H
31
H1
10
M
M3x0,5 - 4 mm deep
.jpg)
SpanClamps Part No SCSBLQT1220-S is factory new.
SpanClamps Part No SCSBLQT1220-S has a certificate of Quality, and certificate of Conformity.
Maximum dynamic loads are currently set at 1/4th of the static loads, this needs to be life tested in the customer application.
