SCSBLQT Knob Locking Quarter Turn with Steel wing head

SCSBLQT0614


This Spanclamps Part # SCSBLQT0614 is a Knob Locking Quarter Turn with Steel wing head. This clamp has a metal knob head and bears indications showing if the clamp is open or closed. The clamp is furnished with 3 socket head cap installation screws of M2x0,4 - 5 mm. The receptacle that is used with this clamp is

Technical information


Weight (g)
120
Heatresistant
200 °C
Shear strength*
9000 N
Tensile strength*
1500 N
Clamping force
50 N

Material Info.


Body
S45C - electroless nickel-plated
Shank
S45C - electroless nickel plated / quenced and tempered
Knob
SCS13
Ball
SUS440C - quenced and tempered
Spring
SUS304WPB


REQUEST A QUOTE     DOWNLOAD CATALOGUE

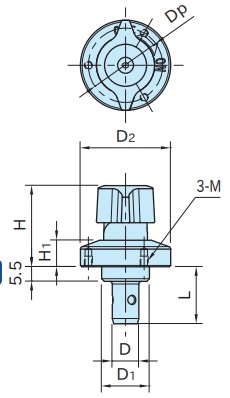

Measurments


Plate thickness
6-14 mm
D (- 0,10 / - 0,05)
10
D1 (h9)
18
D2
34
D3
34
DP
28
L
21,5
H
31
H1
10
M
M3x0,5 - 4 mm deep

SpanClamps Part No. is factory new.
SpanClamps Part No. has a certificate of Quality, and certificate of Conformity.


*Shear & Tensile Strength are static loads. Fastener will break when it receives this load. When the two plates receive a tensile load bigger than the fastener's clamping force, there will be a gap between the plates.
Maximum dynamic loads are currently set at 1/4th of the static loads, this needs to be life tested in the customer application.
