SCSBLQT Knob Locking Quarter Turn with Steel wing head

SCSBLQT0610

This Spanclamps Part # SCSBLQT0610 is a Knob Locking Quarter Turn with Steel wing head. This clamp has a metal knob head and bears indications showing if the clamp is open or closed. The clamp is furnished with 3 socket head cap installation screws of M2x0,4 - 5 mm. This part is discontinued, please us our new part number which is fully made in Stainless steel:  SCSBLQT0610-S

Recommended Receptacle


Proper sensor Receptacle

SCBLREM16-S

Technical information


Weight (g)
50
Heatresistant
200 °C
Shear strength*
3000 N
Tensile strength*
500 N
Clamping force
30 N

Material Info.


Body
303 Stainless steel
Shank
S45C -Steel- electroless nickel plated / quenced and tempered
Knob
SCS13 stainless steel (Equivalent to 304)
Ball
440C - quenched and tempered
Spring
304 Stainless steelWPB

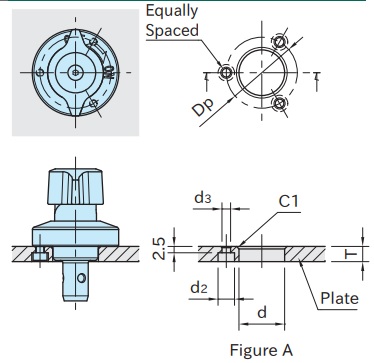

Measurments


Plate thickness
6-10 mm
D (- 0,10 / - 0,05)
6
D1 (h9)
14
D2
25
D3
25
DP
21
L
19,5
H
24,5
H1
6,5
M
M2x0,4 - 3 mm deep

SpanClamps Part No SCSBLQT0610 is factory new.
SpanClamps Part No SCSBLQT0610 has a certificate of Quality, and certificate of Conformity.



*Shear & Tensile Strength are static loads. Fastener will break when it receives this load. When the two plates receive a tensile load bigger than the fastener's clamping force, there will be a gap between the plates.
