Pneumatic Quick accurate positioner Stud Electroless nickel plated Direct Style

SCPQAPS16D-N

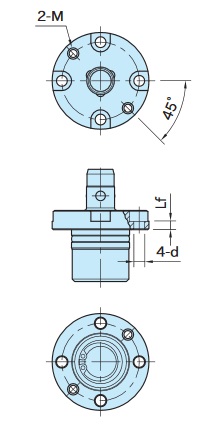

This SpanClamps Part # SCPQAPS16D-N is a Pneumatic Quick accurate positioner Stud Electroless nickel plated Direct Style.

Recommended Receptacle

Technical information

Weight (g)

252

Operating Air Pressure

0.5 Mpa

Clamping Force

350

M

M5x0.8

Lf

4

Material Info.

Body

S45C Steel Electroless Nickel Plated

Coiled Spring

304 Stainless steelWPB Stainless Steel

Ball

440C Stainless Steel

REQUEST A QUOTE DOWNLOAD CATALOGUE

Measurments

D1 (g6)

32

H3

8.5

D2

31.4

H1

25.5

D

51

H

9.5

D3(h8)

16

H2

28.5

d

5.5

D4

9.5

SpanClamps Part No SCPQAPS16D-N is factory new.
SpanClamps Part No SCPQAPS16D-N has a certificate of Quality, and certificate of Conformity.

Maximum dynamic loads are currently set at 1/4th of the static loads, this needs to be life tested in the customer application. *Shear & Tensile Strength are static loads. Fastener will break when it receives this load. When the two plates receive a tensile load bigger than the fastener's clamping force, there will be a gap between the plates.
